There are a number of options available for viewing diffraction images, sadly none of them are perfect.
During data collection, some images will be displayed in the GDA in the Detector Image Plot window. It is possible to modify the image settings to make this more useful.

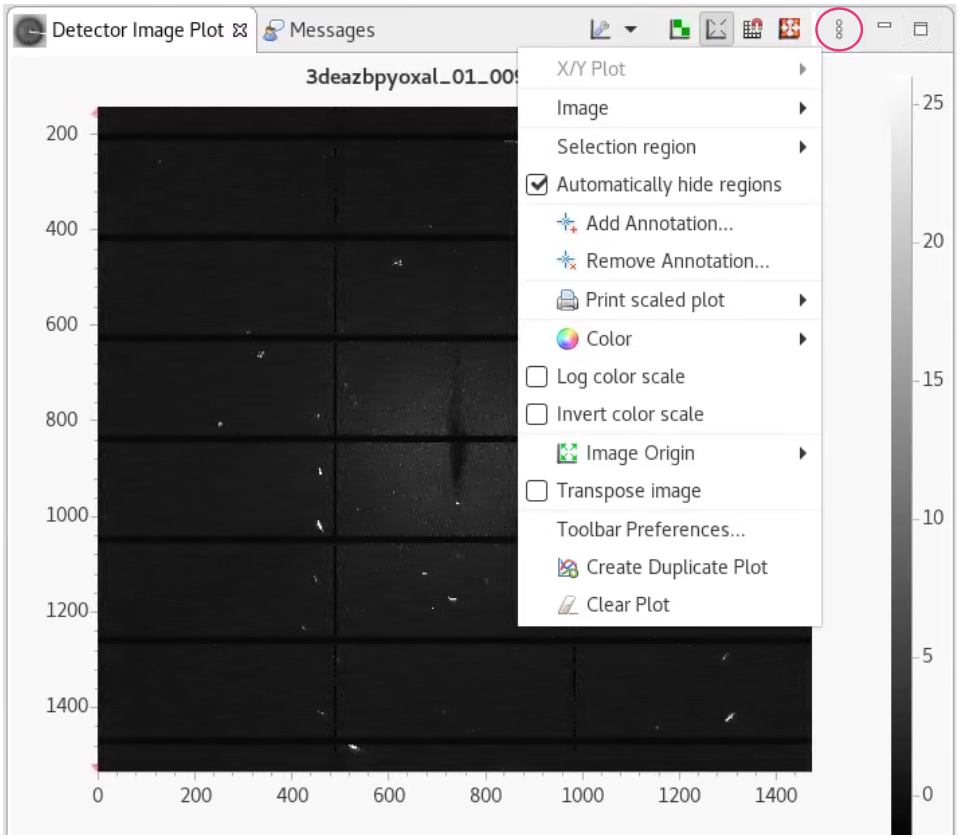

Click on the vertical array of dots to bring up the list of image options – e.g., invert the image colour scale.

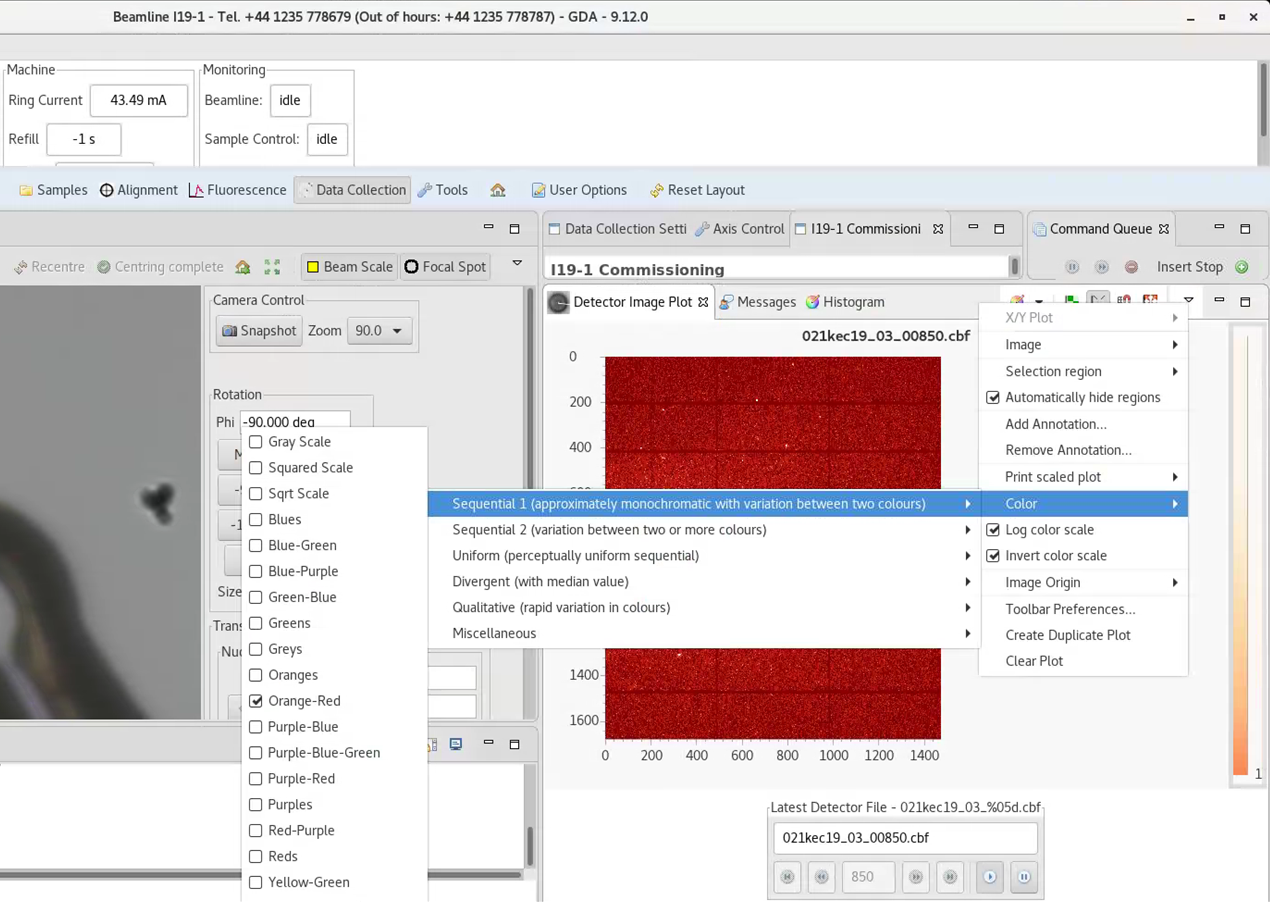

You can also change the colour scheme - click on the arrow next to colour to have a look (and a play).
Below is orange-red and above is grey scale from sequential 1, for example.
Click on the scale on the right-hand side and scroll to change contrast. Thebutton will auto-histogram. Right click on the scale to lock the contrast while scrolling through images.
You might need to look in preferences to find the box to make your changes stick, but once set they should be remembered and then be sensible in the future.

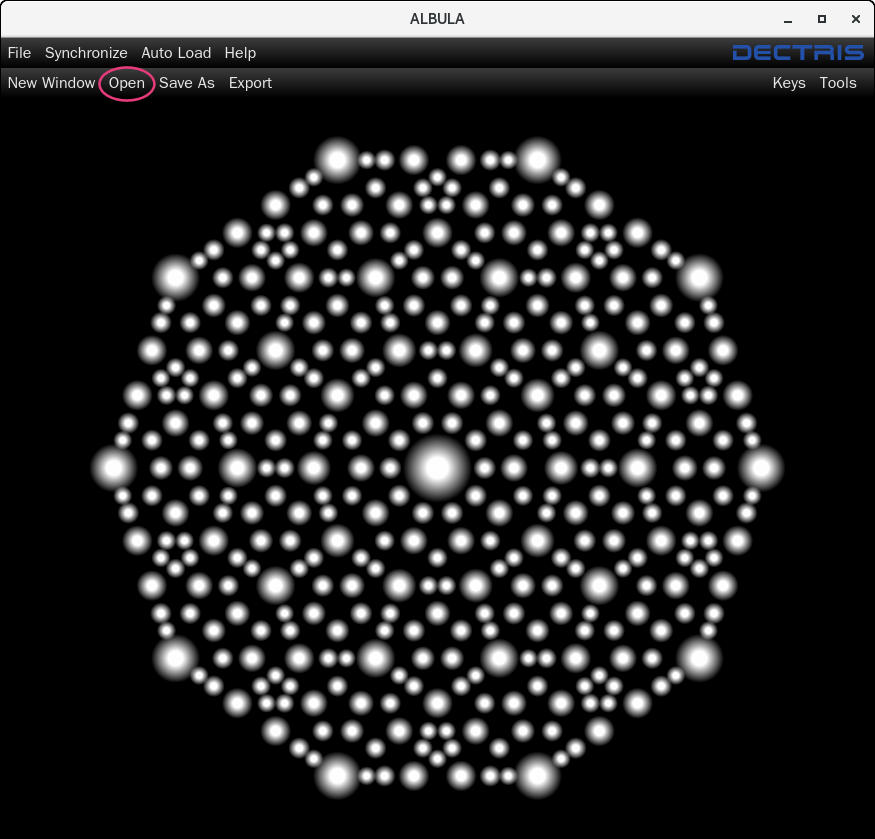

To view images in Albula (Dectris software), open a terminal window and type albula, then press enter. [You may need to type module load i19 or module load albula first if the terminal has not been set up for I19.]
Click Open in the top left-hand corner and navigate to the desired dataset - bear in mind that a folder containing a lot of images will take a while to load in.
The Tool menu shown on the right had side is opened by clicking on in the top right-hand corner.
There are a number of image viewing options:
High Dynamic Range highlights the strongest reflections with red dots – important note: this is not related to the detector threshold and does not mean these reflections are overloaded.

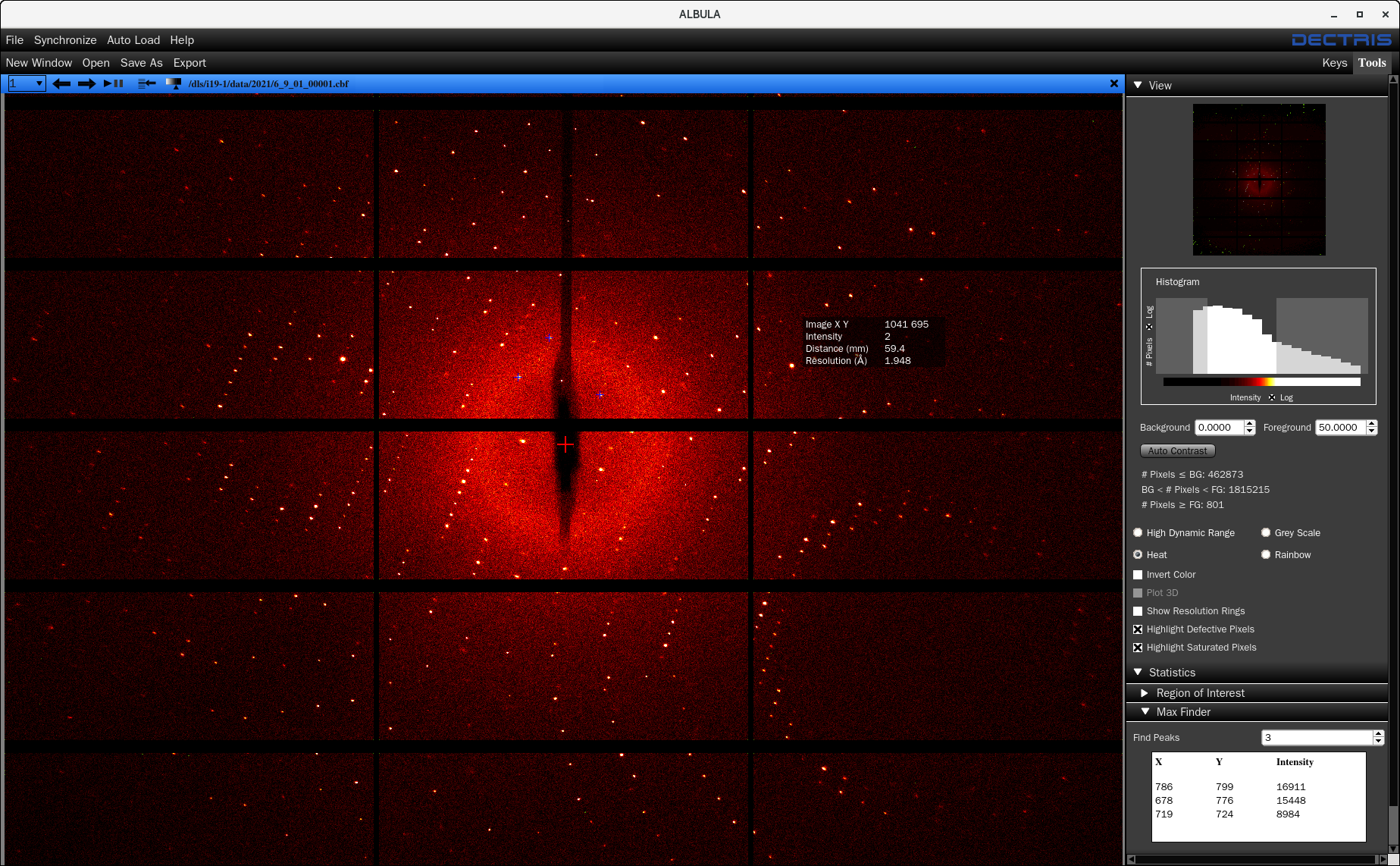

Heat gives yellow and red images, similar to the standard display in Apex and is usually the clearest option to see the reflections.
The contrast of the image can be changed by:
The image can be zoomed by simply rolling the mouse wheel
Opening the Statistics section of the Tool bar gives you the option to highlight the strongest reflections with blue crosses (choose how many by typing the number in the box, e.g., 3 in the screenshot above).
Resolution rings can be checked but it is important to note that they are only accurate for the 2 theta=0° scans. For 2 theta=30° scans, the edge of the second column of sensors is about 0.8Å resolution when at a wavelength of 0.6889 Å.
To move through the images, click on the arrow buttons , or the play/pause button
to auto-play. The number of images viewed can also be changed if you don’t want to see every one – click on the down arrow and select the step-size required
.
To open all images in a folder from the location of the images type:
dials.image_viewer *.cbf
Alternatively, from anywhere type:
dials.image_viewer /dls/i19-1/data/YEAR/VISIT/path/to/images *.cbf
To just open a single run, use *_04*.cbf for example, to just look at run 4

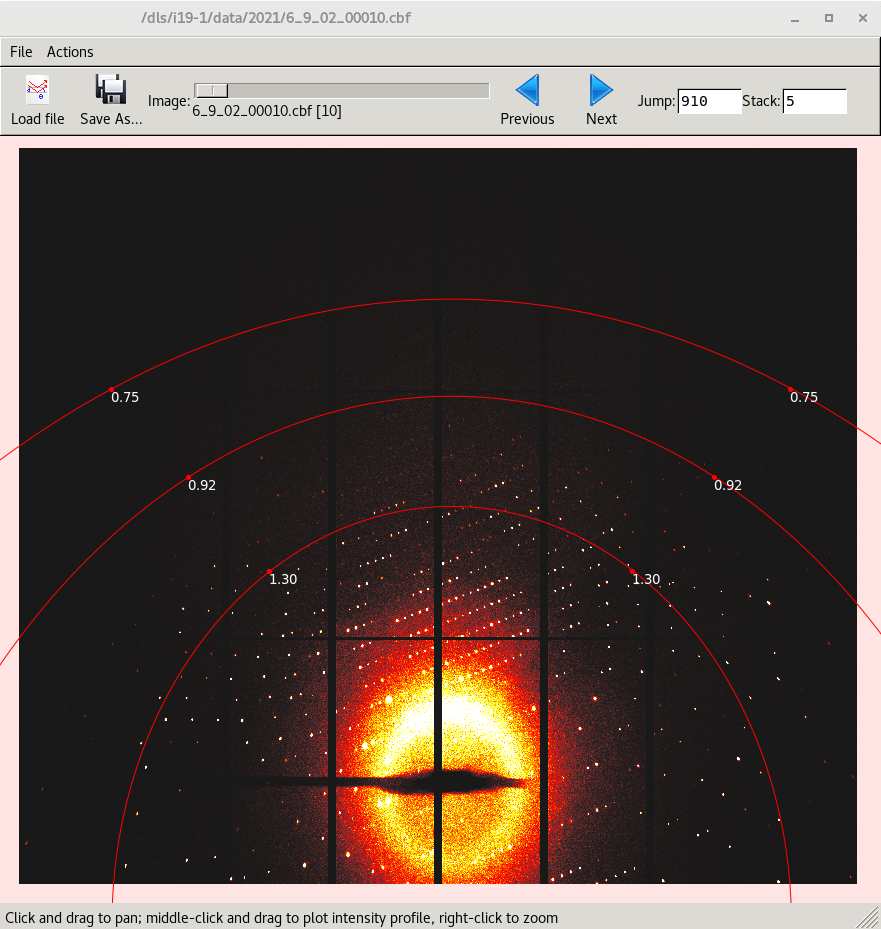

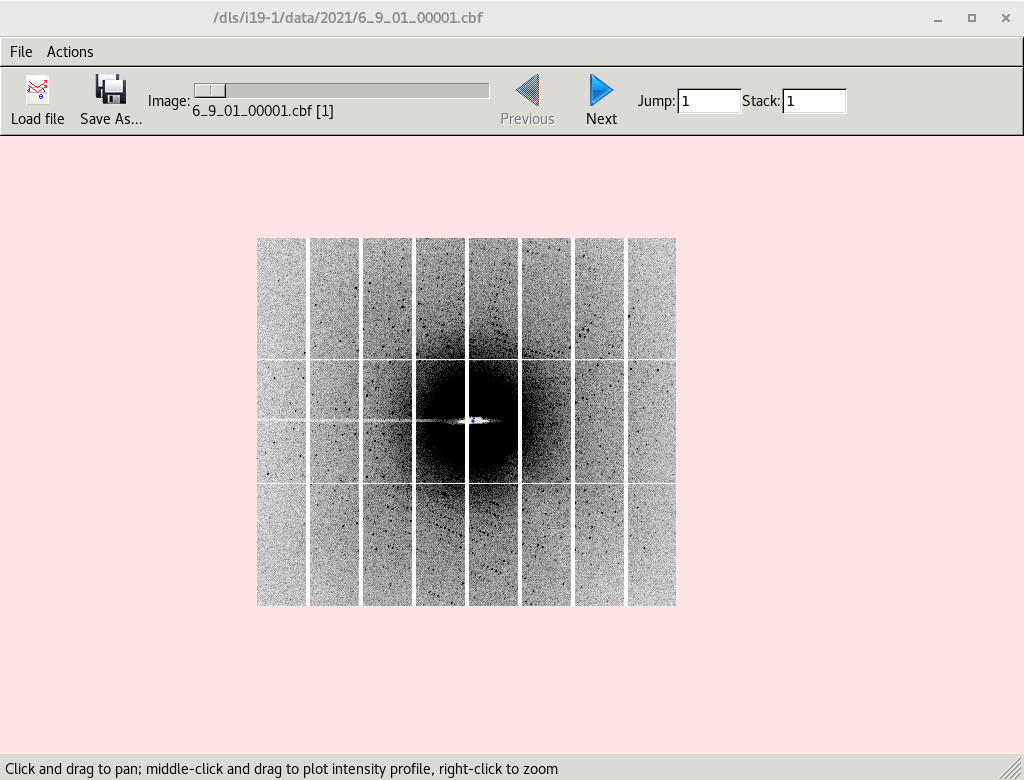

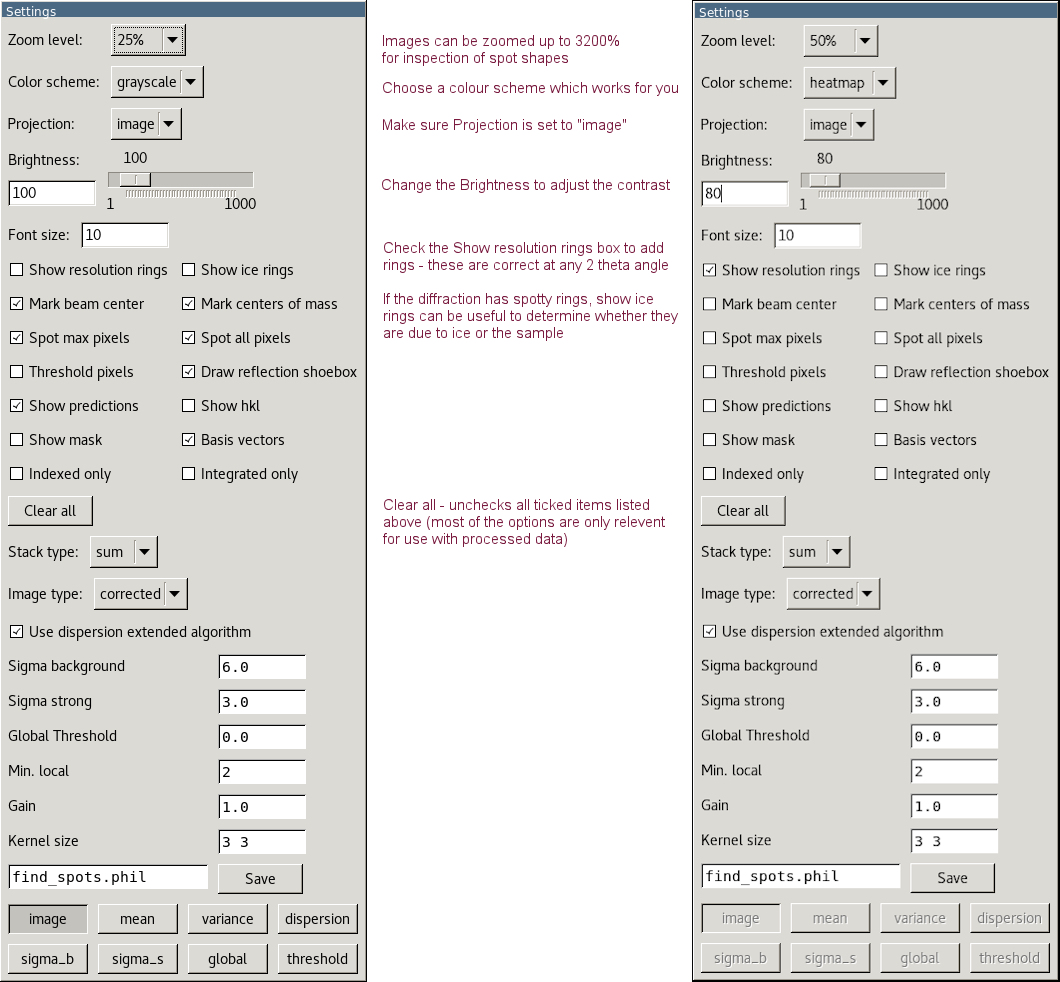

The Image and Settings windows should open. Adjust the settings to make the reflections clearer.
Use Next/Previous to move on/back a single image. Use the scroll bar to move very quickly to another image or type the image number in the Jump box to view a specific image. Jump is based on the total number of images in the dataset with no regard for the run number so for the default run list, the final image of the dataset is 3450.
Stack will sum adjacent images so, for example, 5 x 0.2° images will stack to show the equivalent of a 1° image.
Another option which may be particularly useful if you are accessing the beamline remotely (Albula can run very slowly and the images end up very pixelated), is ADXV.
In a terminal, type module load adxv, press enter
Then type adxv and press enter

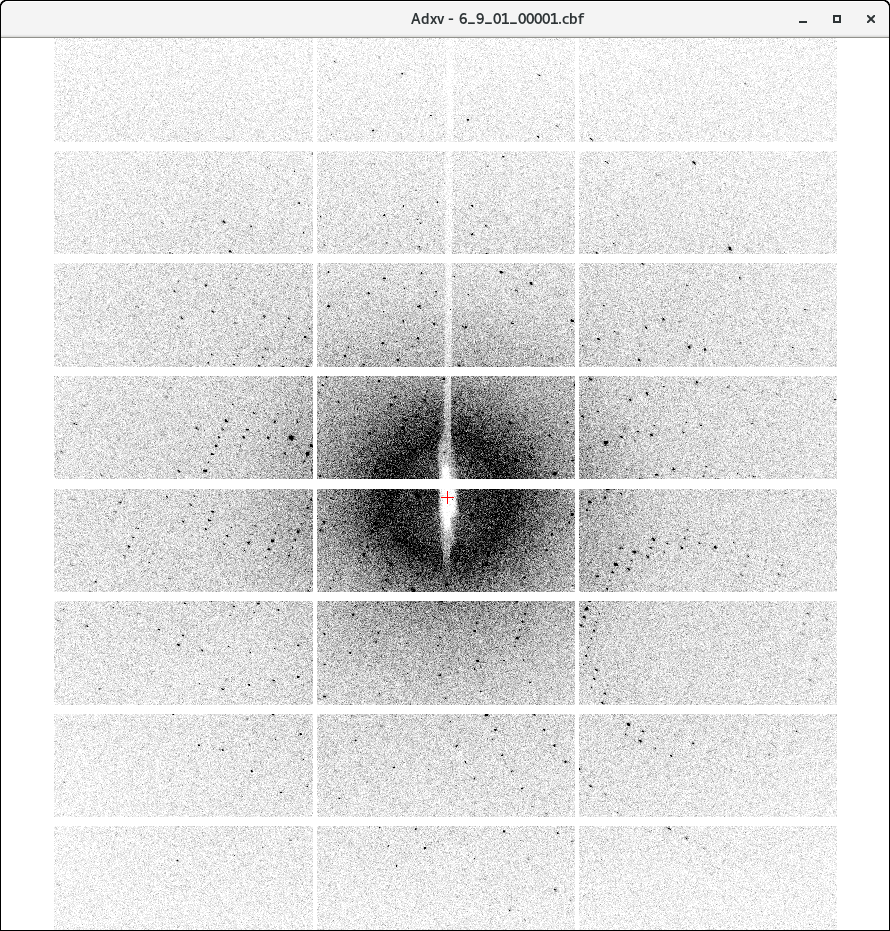

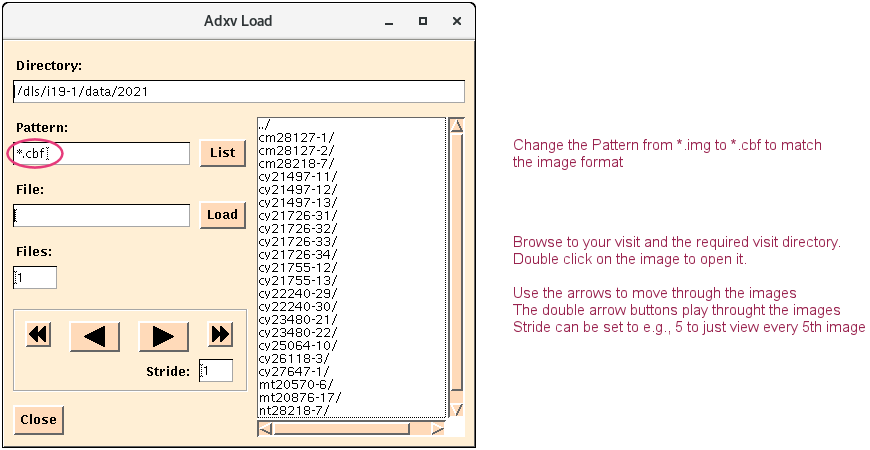

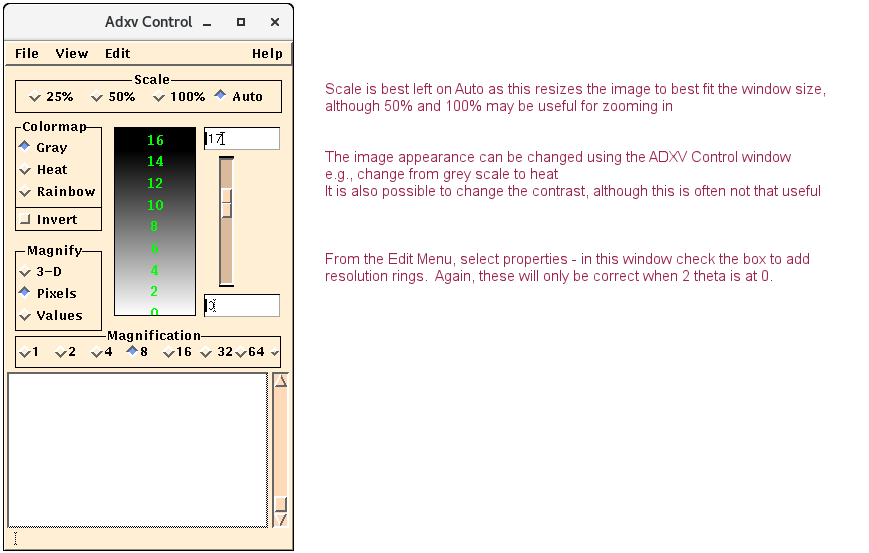

Three windows should open
