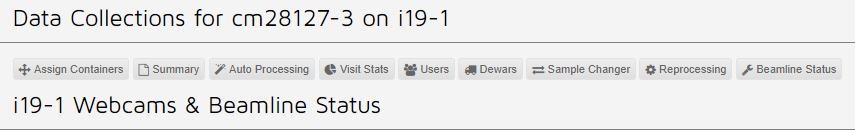

A short cut to the page for assigning the puck positions within the robot Dewar
Produces a table of results for the data collections shown on the front page, so only the first sweep of multirun data collections. It includes unit cell parameters and some useful statistics, although they would probably be more useful if they were for the results from the full data collection.
Auto Processing simply shows which data collections were processed successfully but again, only for the first sweep.
Here, the proportion of time spent completing various tasks, including time the robot is in action, time spent centring and time spent collecting data can be seen as a function of the shift. This can be looked at in more detail by drawing a box around the period of interest.
Totals for the visit are also displayed including "Thinking" time.
A drop down appears showing the users on the visit and who the local contacts are.
A drop down shows which Dewars are associated with the current visit and their current status.
Sample Changer opens a new page with a pictorial overview of the maximal status of the samples, e.g., which ones have been loaded only, which have had data collected and which have had data collected and been successfully auto processed. At the moment, the screening flag doesn’t work as screening is not differentiated from data collections.
To make the view more user friendly make the browser window as narrow as possible, refresh the view and then maximise the window again – this should make the padding for each sample representation smaller and make it possible to see more samples at once.
Clicking on a sample will show all actions performed on that sample (as shown on the home data collections page) at the bottom of the screen.
Reprocessing opens a window showing a list of current and completed reprocessing jobs with any input commands set - resolution, unit cell information and which images were used.
Click on the relevant line (the top line has the results for all included sweeps) under files to be taken to the results of the processing job.
This will appear as another result in the Auto Processing section for that data collection. The 2 chasing arrows show that this is a manual reprocessing job rather than any of the auto processing jobs. All options for the reprocessed job match those of the auto processing.
